KC600 256 GB
- Contains drive only, cloning software not included
- SATA Rev 3.0
- XTS-AES 256-bit encryption, TCG Opal 2.0, eDrive
- 3D TLC NAND technology
- Up to 550MB/s read, 500MB/s write
- Part Number: SKC600/256G

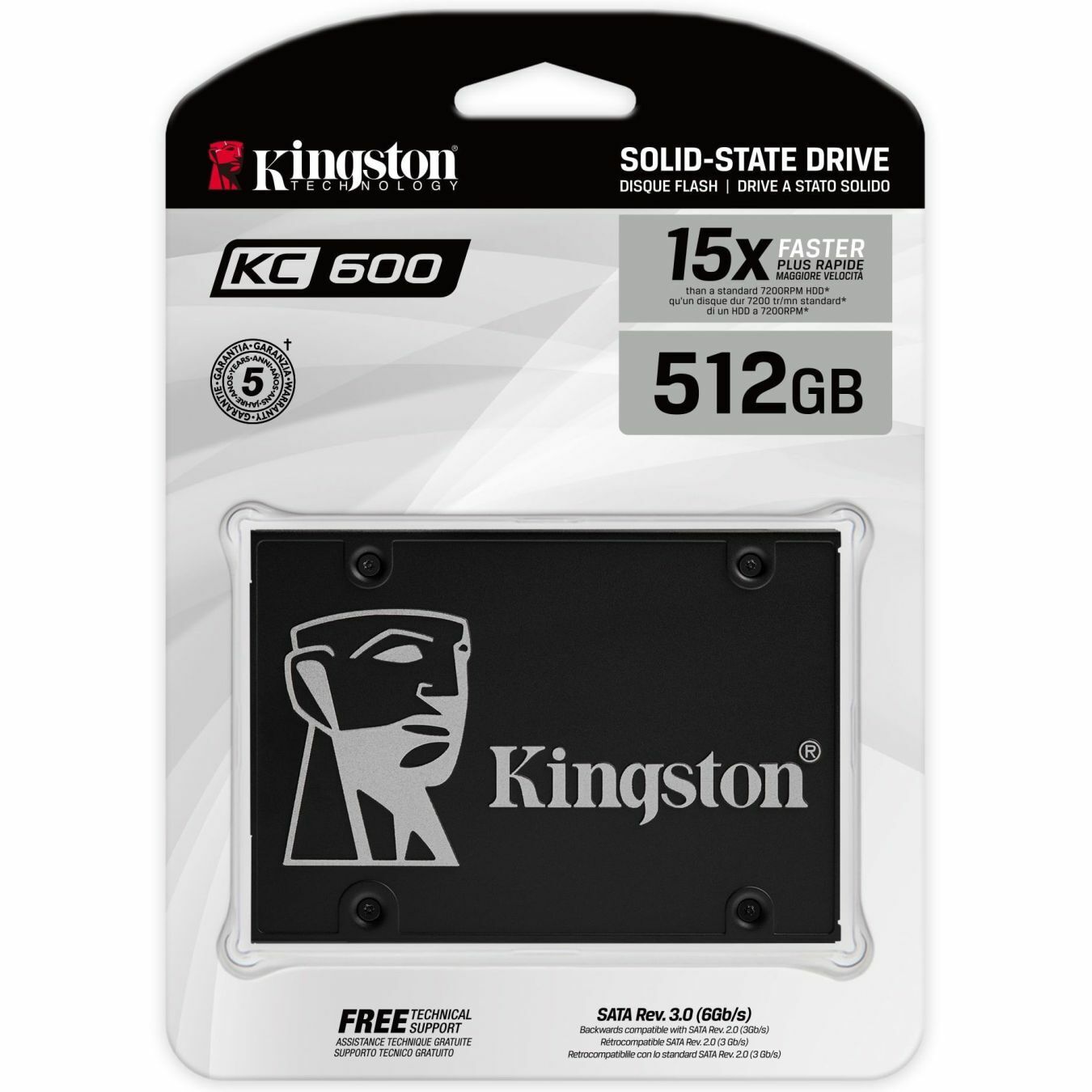

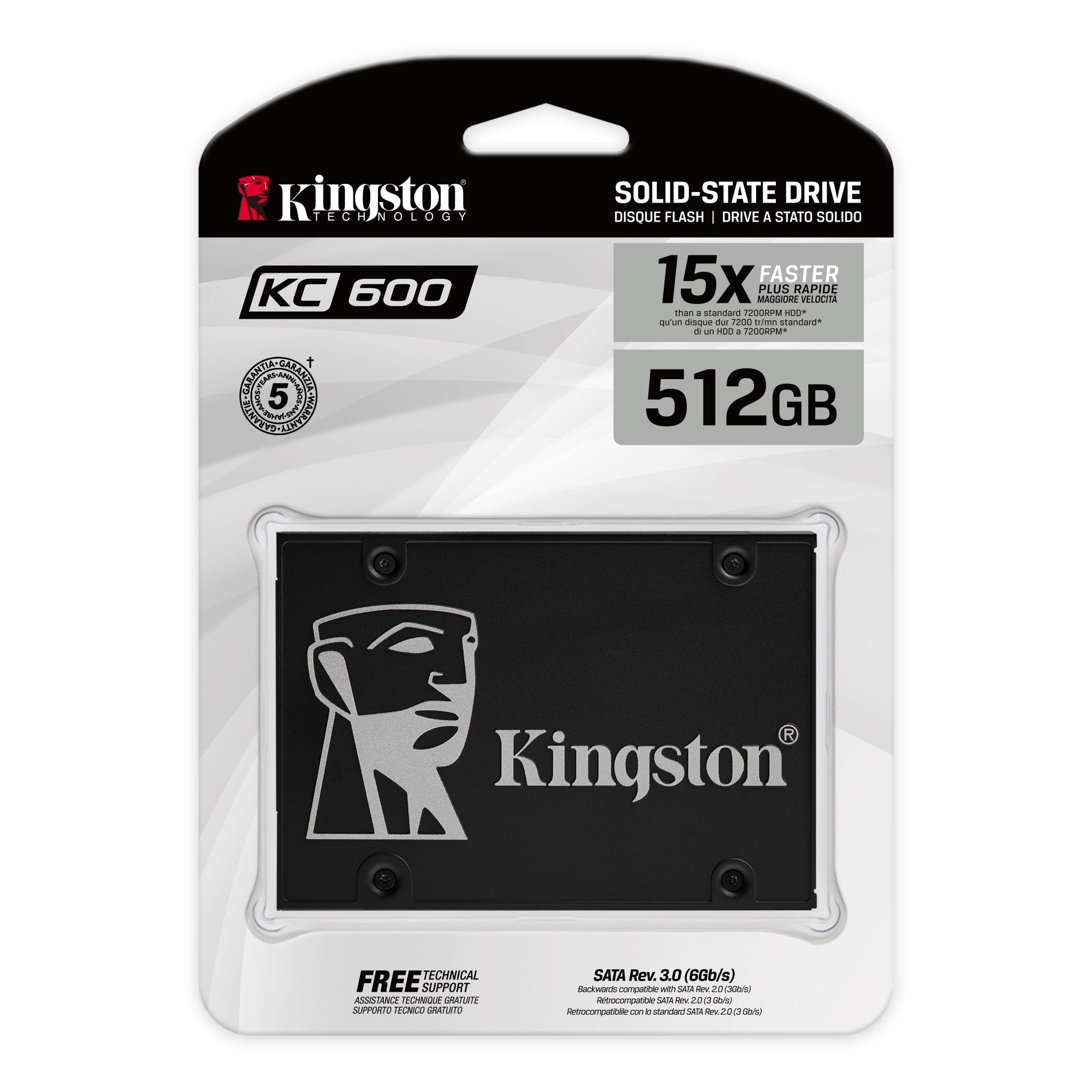

KC600 512 GB
- Contains drive only, cloning software not included
- SATA Rev 3.0
- XTS-AES 256-bit encryption, TCG Opal 2.0, eDrive
- 3D TLC NAND technology
- Up to 550MB/s read, 520MB/s write
- Part Number: SKC600/512G

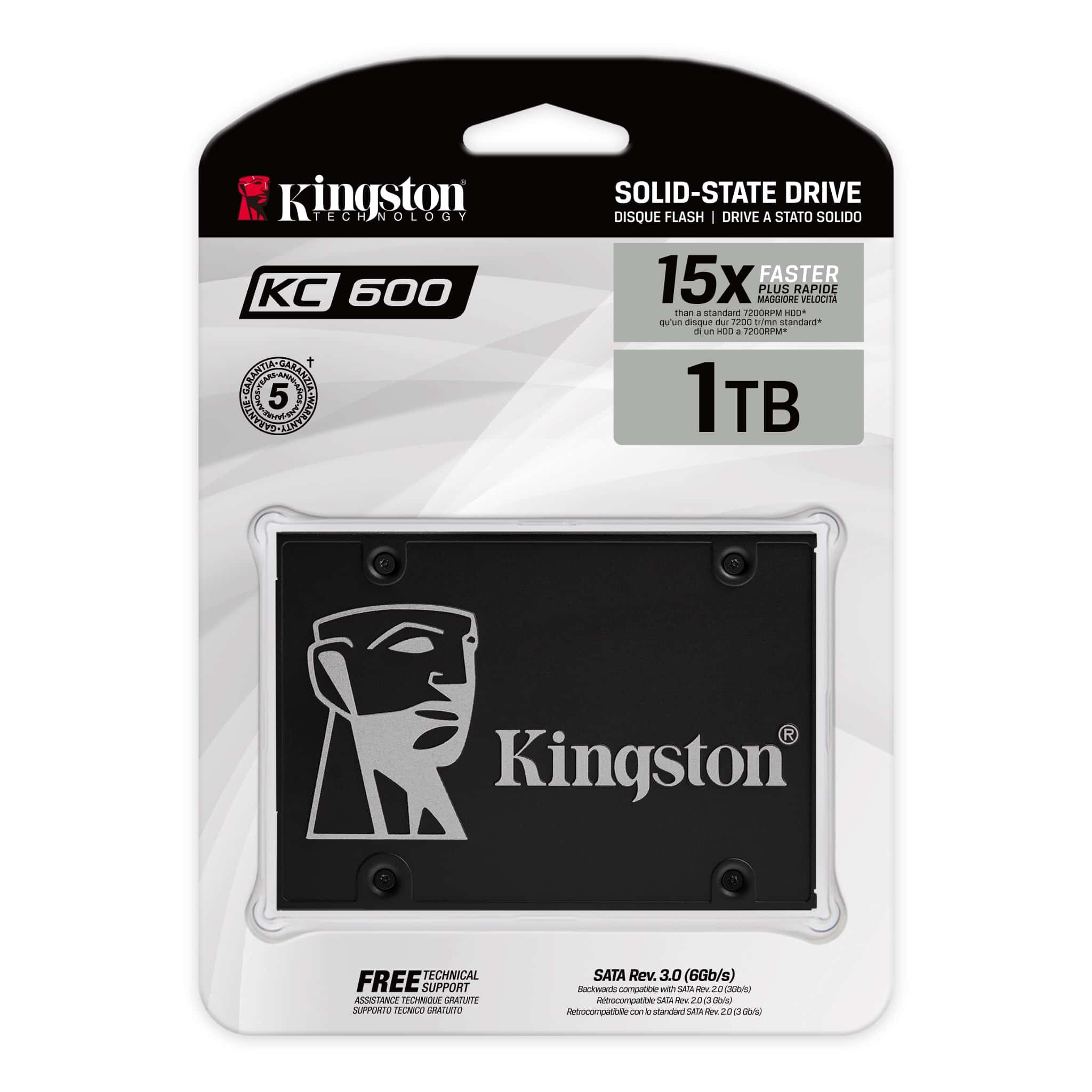

KC600 1024 GB
- Contains drive only, cloning software not included
- SATA Rev 3.0
- XTS-AES 256-bit encryption, TCG Opal 2.0, eDrive
- 3D TLC NAND technology
- Up to 550MB/s read, 520MB/s write
- Part Number: SKC600/1024G
Product Description

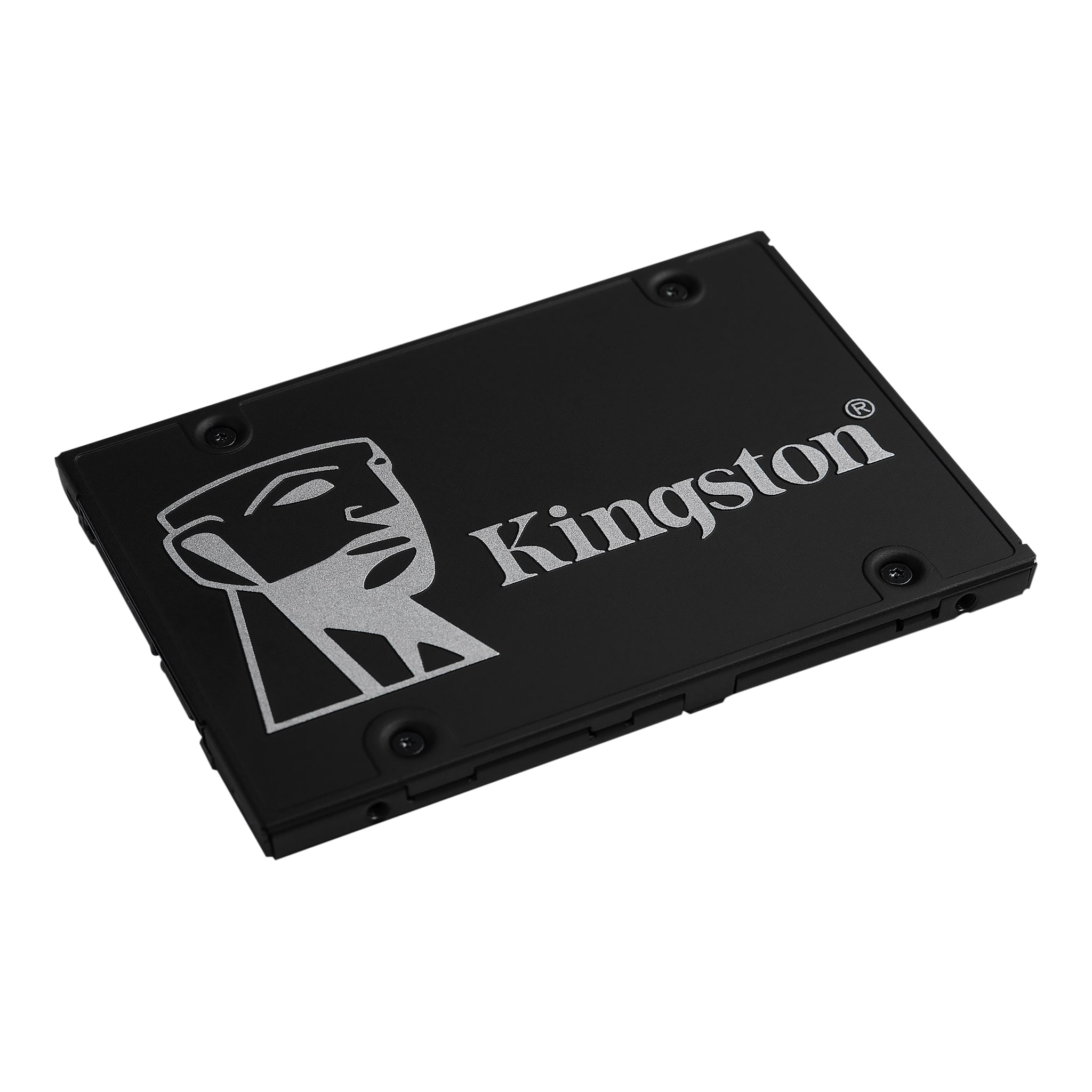

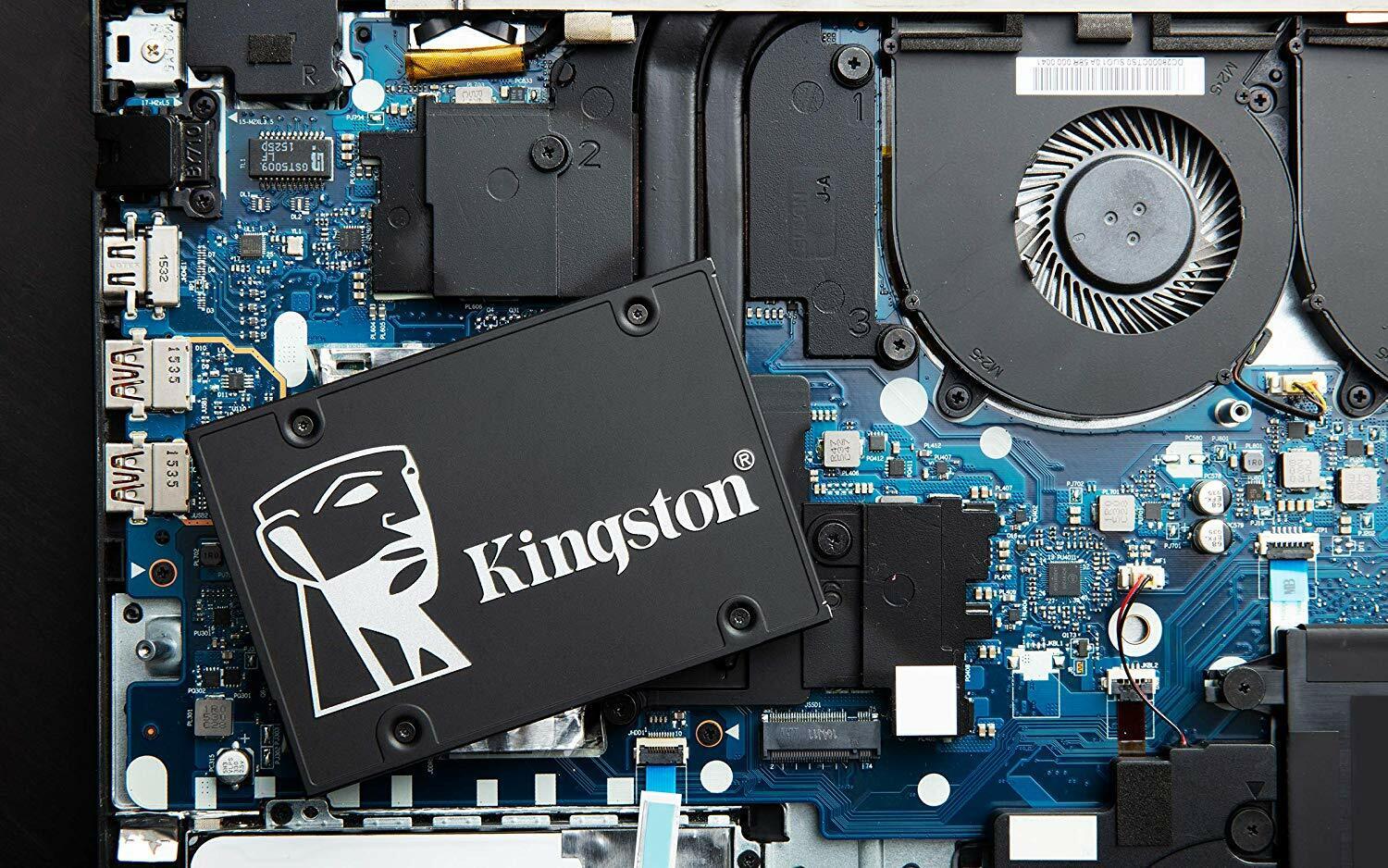

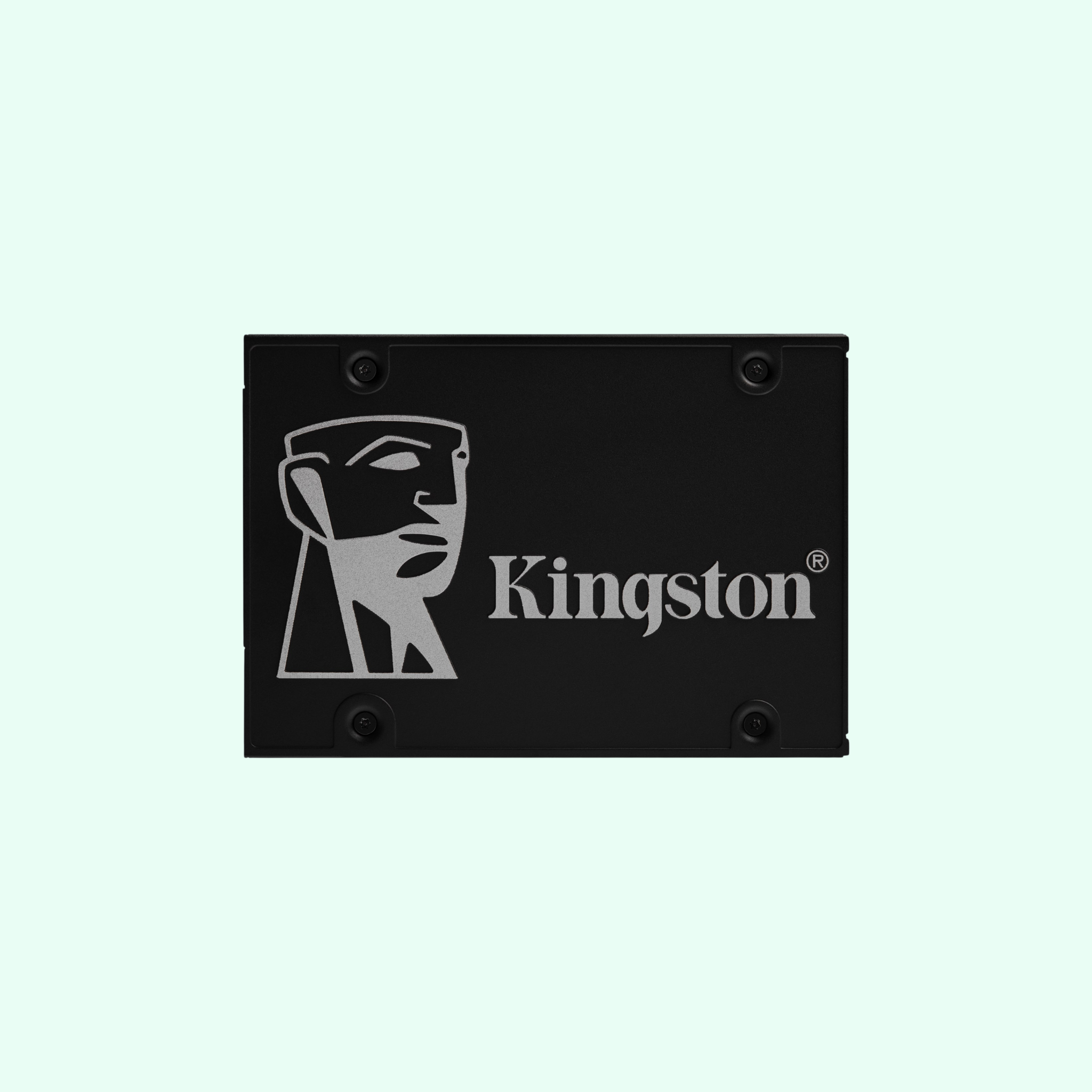

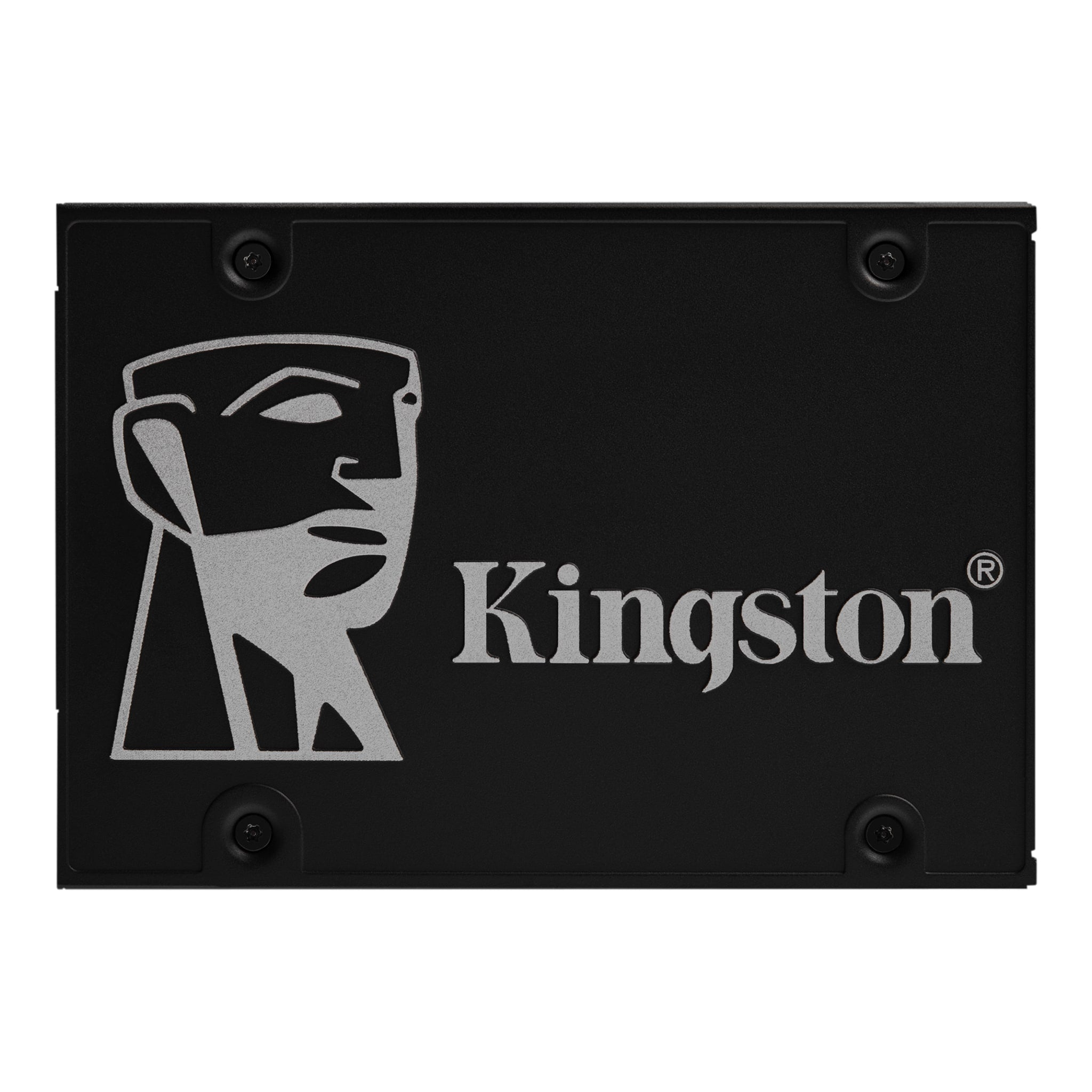

KC600 2.5" Hardware-based self-encrypting drive with 3D TLC NAND
Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5" and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility.

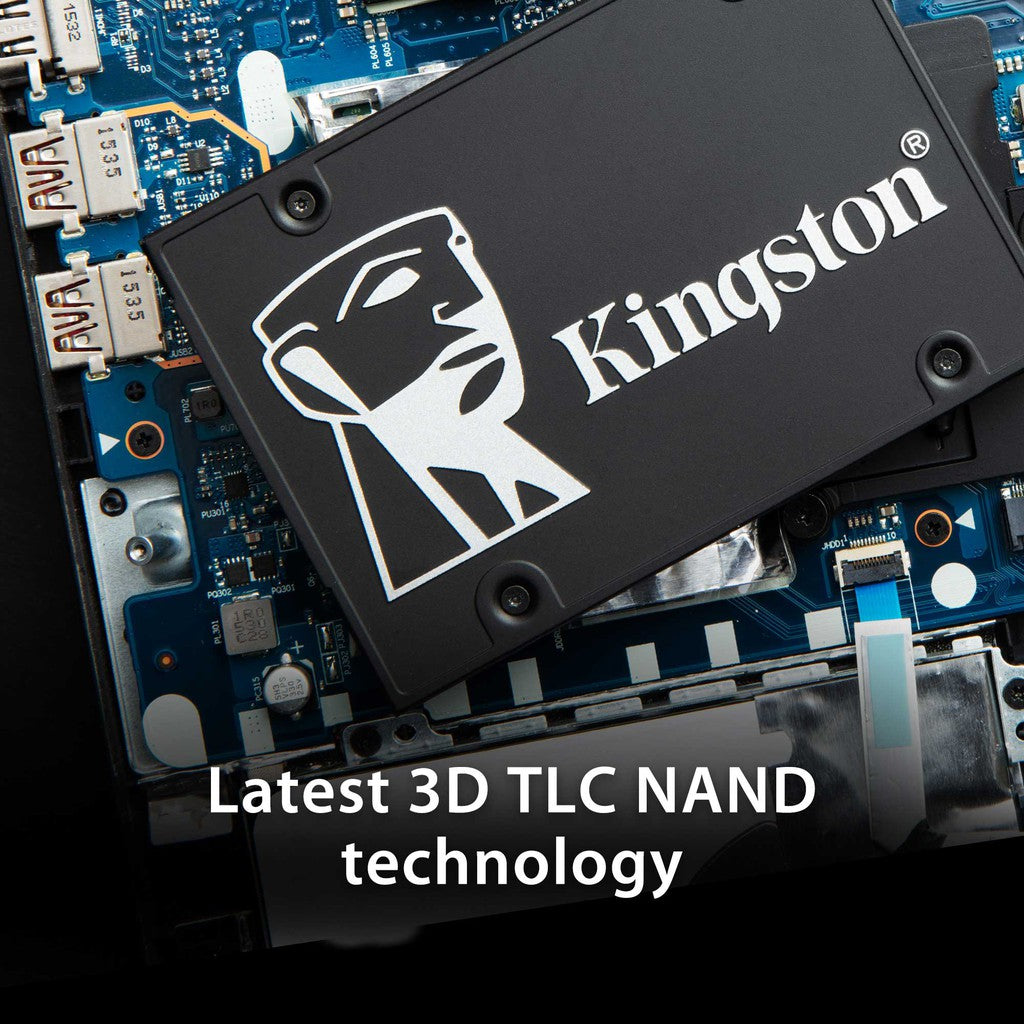

The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal 2.0 and eDrive. It features read/write speeds of up to 550/520MB/s to efficiently store your data up to 2TB.
Product Specifications
Form Factor
|
2.5"
|
Interface
|
SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s)
|
Capacities2
|
256GB, 512GB, 1024GB, 2048GB
|
Controller
|
SM2259
|
NAND
|
3D TLC
|
Encrypted
|
XTS-AES 256-bit encryption
|
Sequential Read/Write1
|
256GB — up to 550/500MB/s 512GB–2048GB — up to 550/520MB/s
|
Maximum 4K Read/Write1
|
up to 90,000/80,000 IOPS
|
Power Consumption
|
0.06W idle / 0.2W avg / 1.3W (MAX) read / 3.2W (MAX) write
|
Dimensions
|
100.1mm x 69.85mm x 7mm
|
Weight
|
40g
|
Operating temperature
|
0°C~70°C
|
Storage temperature
|
-40°C~85°C
|
Vibration operating
|
2.17G Peak (7-800Hz)
|
Vibration non-operating
|
20G Peak (10-2000Hz)
|
Life expectancy
|
2 millions hours MTBF
|
Warranty/support3
|
Limited 5-year warranty with free technical support
|
Total Bytes Written (TBW)4
|
256GB — 150TB 512GB — 300TB 1024GB — 600TB 2048GB — 1200TB
|
